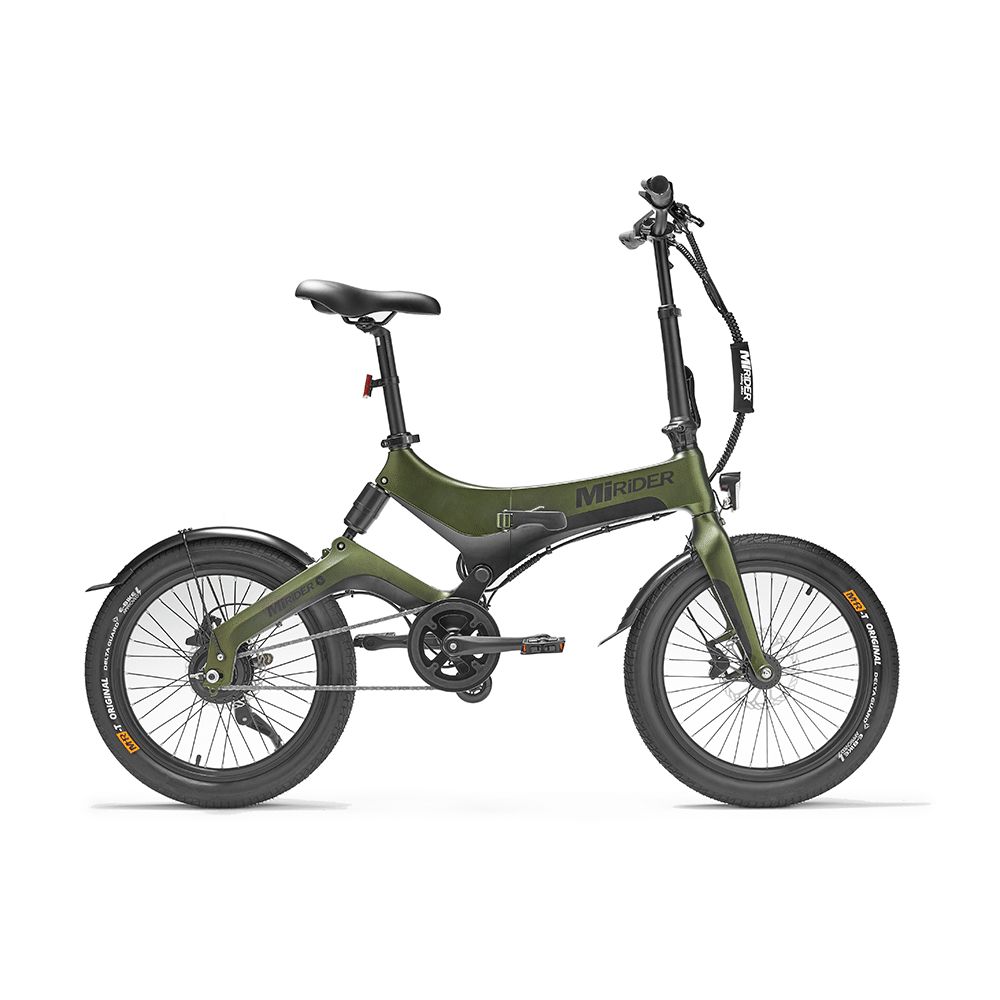

Continuing the distinctive MiRIDER DNA, MiRider developed a bigger 20″ wheel for a folding ebike that still keeps its compact credentials, and lightweight features, and boasts agile handling. The MiRiDER 20 has enviable MiDRiVETM electric drive system that can achieve upto 45 miles on a single charge, whilst offering the perfect blend of “boostable” fun.
The MiRiDER 20 inch offers the best of both worlds for everyday adventures. As comfortable on a commute as it is on an action-packed leisure holiday, the striking looks and dynamic ride balance perfectly with it’s compact fold for additional practicality. Like it’s 16 inch sibling, the battery is located centrally within its modern frame design for superior weight distribution and handling. The integrated rear suspension maximises comfort and fun for those off-road pursuits.
The 20 is designed around the philosophy of fun and dynamic values which meant keeping the weight low and the riding pleasure high. We achieved this by using a 20 inch wheel, shorter wheelbase and our enviable MiDRiVETM power system. The geometry of the Magnesium Alloy frame allows great balance and control for a wide range of rider size and ability levels. By using clever componentry from our folding experience, the bike can quickly shrink in size for sector leading storage and transport with all the benefits of a full size experience.
| Motor | MiRiDER Geared brushless silent rear hub motor |
| Nominal Power | 250 W (UK legal limit) with 45 nm of torque |
| Pedal Assist Top Speed | 25 km/h or 15.5 mph (UK legal limit) |
| Battery Type | Samsung 18650 Lithium-Ion Cells |
| Battery Specs | 36 v 7 Ah / 252 Wh |
| Battery Features | Removable and lockable |
| MAX Range | up to 72 km or 45 miles (based on power level 1, average pace,
rider weight and even terrain) |
| Climbing Angle | 25 degrees maximum (based on average rider weight) |
| Charge Time | 2-3 hours (using 42 v, 3.0 A UK charger supplied) |
| Handle Bars | High rise 64cm handlebars with folding stem |
| Controller | KT Sine-wave with Torque Simulation featuring thumb throttle
(compliant with all UK legal parameters) |
| Display | Compact Multi-function LCD with blue back light |
| Dash board readouts | Speed (km/h or mph), distance travelled ODO/trip (miles/km),
battery level, pedal assistance level, Led headlight (on/off) |
| Pedal Assist | 5 levels |
| Frame/Fork | Magnesium Alloy |
| Accessories Included | Front/rear mudguards, Front LED light, kickstand, adjustable folding strap & battery charger. Warning Bell |
| Folded & Unfolded Dimensions | Lx920*Wx520*Hx720 mm / Lx1540*W650*Hx1160 mm |
| Brakes | Clarks HD-M3000 160mm 2 piston hydraulic with e-cut outs |
| Comfort | Adjustable handlebar rake and fixed seat stem |
| Tyres | MiR-T Original Road 20 x 2.125″ with delta guard and puncture fluid |
| Wheels | 20” with aero rims featuring quick release front hub |
| Saddle | Standard saddle with foam |
| Pedals | Wellgo metal folding pedals |
| Chain | KMC anti-rust |
| Total Approximate Weight Fully Equipped | 20 kg |
| Maximum Recommended Rider Weight | 120 kg |
| Rider Height | 152 cm – 195 cm / 5’0 – 6’4 |
| Road Legal | Worldwide |
