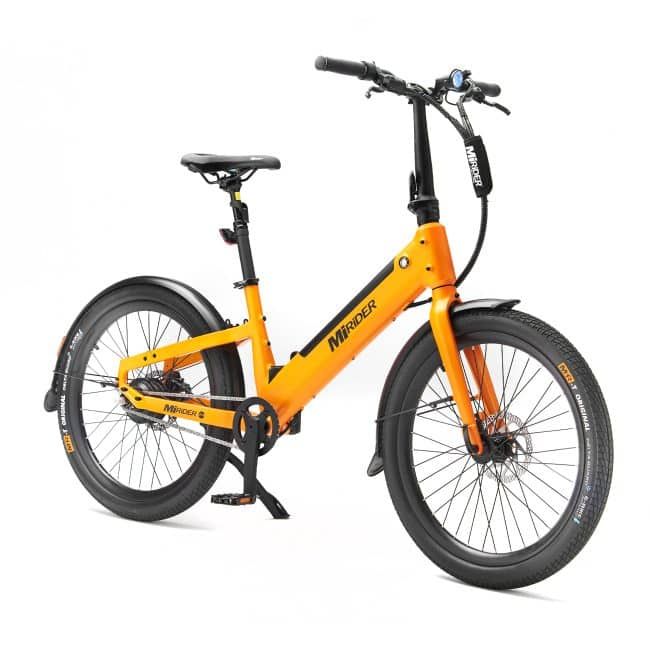

The striking compact step-through MiRiDER 24 is their take on the ‘optimal size ebike’ fulfilling a full-size riding feel, with incredible range and ultimate control, without the huge weight or footprint. Its unique folding stem and pedal combination give it a super slim and low-slung dimension making storage at home, the office and even motorhome garages pioneering. With more luggage-carrying options and light weight design, this model is a true all-rounder, perfect for those seeking bigger adventures.
Continuing the brand DNA, which meant a fun, lightweight and agile bike which stirred emotions and pushed boundaries. We’ve challenged the mainstream offerings by championing the 24in wheel size which we believe offers significant advantages.
The MiDRiVETM electric drive system can achieve over 65 miles on a single charge, whilst offering the perfect blend of “boostable” fun. Featuring space saving components, hydraulic brakes, integrated lighting, front and rear carrier points all in a light-weight 21kg package, it’s a real one bike suits all for any journey.
Motor |
MiRiDER Geared brushless silent rear hub motor |
Nominal Power |
250 W (UK legal limit) with 45 nm of torque |
Pedal Assist Top Speed |
25 km/h or 15.5 mph (UK legal limit) |
Battery Type |
Samsung 18650 Lithium-Ion Cells |
Battery Specs |
36 v 10.5 Ah / 378 Wh |
Battery Features |
Removable and lockable with integrated charge status LEDs |
MAX Range |
up to 100 km or 65 miles (based on power level 1, average pace, rider weight and even terrain) |
Climbing Angle |
25 degrees maximum (based on average rider weight) |
Charge Time |
2-3 hours (using 42 v, 3.0 A UK charger supplied) |
Handle Bars |
High rise 60cm handlebars with folding stem |
Controller |
KT Sine-wave with Torque Simulation featuring thumb throttle (compliant with all UK legal parameters) |
Display |
Compact Multi-function LCD with blue back light |
Dash board readouts |
Speed (km/h or mph), distance travelled ODO/trip (miles/km), battery level, pedal assistance level, Led headlight (on/off) |
Pedal Assist |
5 levels |
Frame/Fork |
Aluminium 6061 |
Accessories Included |
Front/rear mudguards, Front LED light, rear LED brake light, kickstand, adjustable folding strap & battery charger. Warning Bell |
Folded & Unfolded Dimensions |
1760*330*860 mm / 1760*65*1160 mm |
Brakes |
Clarks HD-M3000 160mm 2 piston hydraulic with e-cut outs |
Comfort |
Adjustable handlebar rake and telescopic seat stem |
Tyres |
MiR-T Original Road 24 x 2.125″ with delta guard and puncture fluid |
Wheels |
24” with aero rims featuring quick release front hub |
Saddle |
MiRiDER Comfort plus with memory foam |
Pedals |
Wellgo metal folding pedals |
Chain |
KMC anti-rust |
Total Approximate Weight Fully Equipped |
21 kg |
Maximum Recommended Rider Weight |
120 kg |
Rider Height |
152 cm – 195 cm / 5’0 – 6’4 |
Road Legal |
Worldwide |
