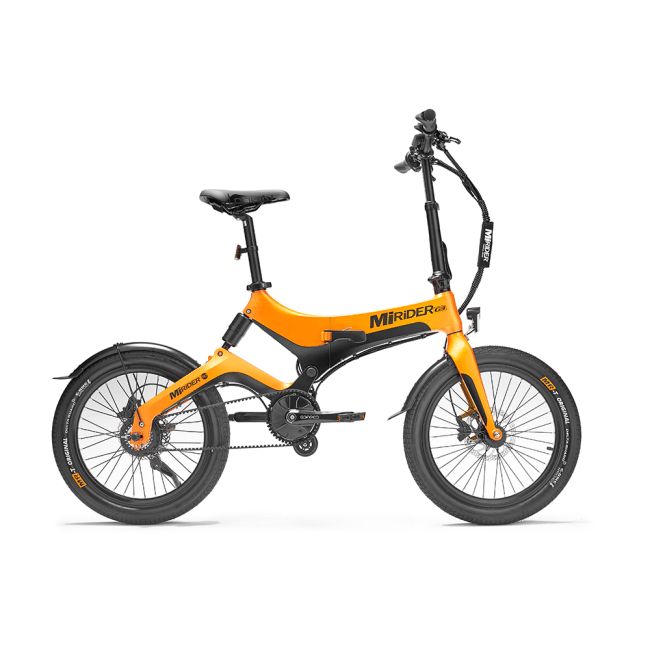

Continuing the distinctive MiRIDER DNA, MiRider developed a bigger 20″ wheel for a folding ebike that still keeps its compact credentials, and lightweight features, and boasts agile handling. The MiRiDER 20 has enviable MiDRiVETM electric drive system that can achieve upto 45 miles on a single charge, whilst offering the perfect blend of “boostable” fun.
Miriders own take on a geared bike. Rather than take the easy, traditional option of moving the hub motor to the front or middle and hanging a derailleur off the back, MiRider wanted to be smarter than that. They wanted to retain the balance, weight distribution, efficiency and traction a rear wheel motor offers whilst avoiding a bulky and dirty gear set.
| Motor | MiRiDER Geared brushless silent rear hub motor |
| Nominal Power | 250 W (UK legal limit) with 45 nm of torque |
| Pedal Assist Top Speed | 25 km/h or 15.5 mph (UK legal limit) |
| Battery Type | Samsung 18650 Lithium-Ion Cells |
| Battery Specs | 36 v 7 Ah / 252 Wh |
| Battery Features | Removable and lockable |
| MAX Range | up to 72 km or 45 miles (based on power level 1, average pace,
rider weight and even terrain) |
| Climbing Angle | 25 degrees maximum (based on average rider weight) |
| Charge Time | 2-3 hours (using 42 v, 3.0 A UK charger supplied) |
| Handle Bars | High rise 64cm handlebars with folding stem |
| Controller | KT Sine-wave with Torque Simulation featuring thumb throttle
(compliant with all UK legal parameters) |
| Display | Horizontal Multi-function LCD colour display |
| Dash board readouts | Speed (km/h or mph), distance travelled ODO/trip (miles/km),
battery level, pedal assistance level, Led headlight (on/off) |
| Pedal Assist | 5 levels |
| Frame/Fork | Magnesium Alloy |
| Accessories Included | Front/rear mudguards, Front LED light, kickstand, warning bell & battery charger. |
| Folded & Unfolded Dimensions | Lx920*Wx520*Hx720 mm / Lx1540*W650*Hx1160 mm |
| Brakes | Clarks HD-M3000 160mm 2 piston hydraulic with e-cut outs |
| Comfort | Adjustable handlebar and fixed seat stem |
| Tyres | MiR-T Original Road 20 x 2.125″ with delta guard |
| Wheels | 20” with aero rims |
| Saddle | Selle Royal Gel Saddle |
| Pedals | Wellgo folding pedals |
| Belt | Gates Carbon Drive Commute 118t |
| Total Approximate Weight Fully Equipped | 21 kg |
| Maximum Recommended Rider Weight | 120 kg |
| Rider Height | 152 cm – 195 cm / 5’0 – 6’4 |
| Road Legal | Worldwide |
