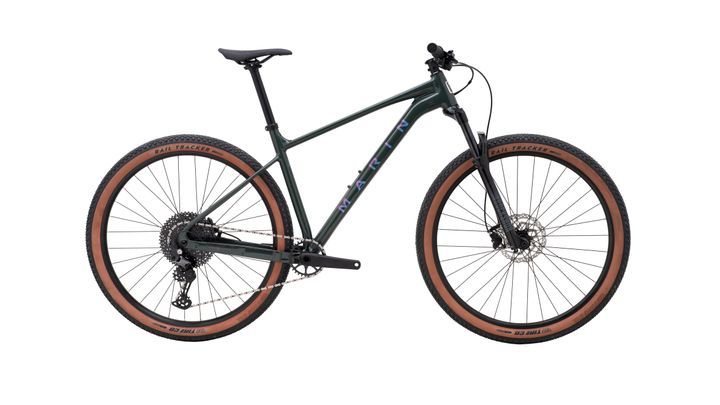

Marin Team Marin 1 Mountain Bike

From XC racing to singletrack shredding, epic adventures to local laps. The modern XC bike has evolved into a super-capable, super-versatile hard-charging rocketship that embodies everything we love about MTB.

CROSS COUNTRY RACING

FUN TRAINING & TRAIL RIDING

XC LIGHT WITH TRAIL RIDING CAPABILITY

We made the Team Marin to be lightning-fast, super composed in the rough-and-tumble of spicy singletrack and perfectly in control up, along and down. It packs all the roll-up-your-sleeves tough of a trail bike and the zip you’d expect from an XC racer to perfectly blend speed with fun. Because who said XC had to be so serious?!

Champagne dreams on a cola budget. The Team Marin 1 brings XC-racer performance to a privateer price-point, all whilst staying super fun and super capable in the singletrack.

We started with a high-end Series 4 aluminum frame and fast-rolling 29” wheels and then added a capable RockShox Judy Silver fork, 12-speed Shimano drivetrain, Shimano hydraulic brakes and Vee Tire rubber to create a super fun, super affordable XC trail shredder.

Specifications

• Frame

  All New Series 4 6061 Aluminum, 29″ Wheels, Superlight Aluminum, Post-Mount Rear Brake, Internal Shifter and Dropper Post Routing, 148x12mm Boost Thru-Axle

• Front Suspension

  RockShox Judy Silver TK, 120mm Travel, Alloy Tapered Steerer, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset

• Rim

  Marin Aluminum Double Wall, 29mm Inner, Sleeve Joint, Disc Specific, Tubeless Compatible

• Hub Rear

  Forged Aluminum, 148x12mm, Disc Specific, 32H

• Hub Front

  Forged Aluminum, 110x15mm, Disc, 32H

• Spokes

  14g Black Stainless Steel

• Tires

  Vee Tire, Rail Rocco XC, 29×2.3″, Dual Control Compound, Folding Bead, Tubeless Ready

• Derailleur Rear

  Shimano Deore, RDM6100, 12-Speed

• Derailleur Front

  –

• Shift Lever

  Shimano Deore, SLM6100, 12-Speed

• Crankset

  Forged Alloy 1×12, Hollow Spindle, Steel Narrow Wide 32T Chainring

• Bottom Bracket

  External Sealed Cartridge Bearings

• Chain

  KMC X12

• Cassette

  SunRace, 12-Speed, 11-51T

• Brakes Front

  Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

• Brakes Rear

  Shimano BR-MT200 Hydraulic Disc, 160mm Rotor

• Brake Levers

  Shimano BL-MT201

• Handlebar

  Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 4º Up, 9º Back

• Stem

  Marin 3D Forged Alloy, 35mm

• Grips

  Marin Single Clamp Locking

• Headset

  FSA No 42ACB, 1 1/8″ x 1 1/2”

• Seatpost

  Marin Alloy, 30.9mm

• Saddle

  Marin Speed Concept

• Pedals

  Nylon Platform
