Designed with the input of freeride legend Matt Jones, the San Quentin takes the DNA of our dirt-jumping Alcatraz and mutates it into a go-further and faster all-round, hardcore hardtail.

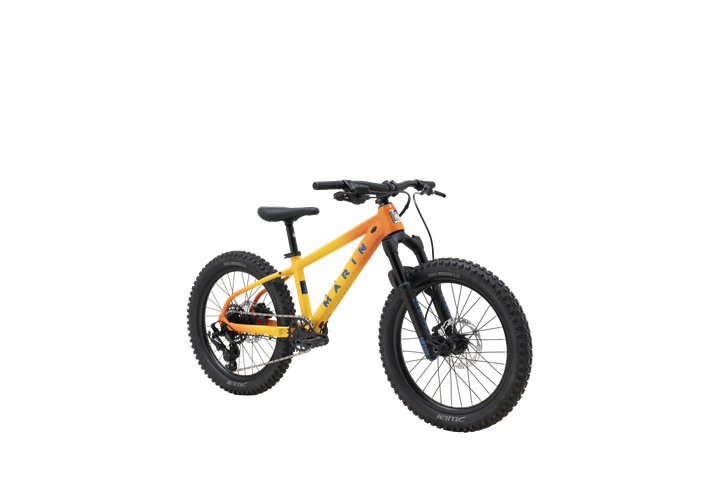

The San Quentin 20” will feel just like a ‘grown up’ mountain bike to your little ripper, built with a stout Series 2 aluminum frame, 20” wheels, and a Manitou J Unit 80mm air suspension fork meaning more adjustability for lighter shredders. Further updates include a one piece seatpost and saddle to allow for a lower standover and ride height, 1 x 8-speed clutch enabled MicroShift Acolyte drivetrain, tubeless compatible tires kid’s specific hydraulic disc brakes.
Series 2 6061 Aluminum, 20” Wheels, Disc Specific, 30.9 Post and Dropper Compatible
Manitou Junit Sport, 20″, 80mm Travel, Air Sprung, Adjustable Rebound, Tapered Steerer. 15x110mm Axle
Marin, Double Wall Alloy, 26mm Internal, Tubeless Compatible
Forged Aluminum, 32H, Disc Specific
Forged Aluminum, 32H, Disc Specific
14g Stainless Steel
Delium Versatile, 20”x2.4”, Light Construction, Wire Bead
MicroSHIFT Acolyte, 8-Speed, Super Short Cage, Clutch
MicroSHIFT Acolyte, Short-Reach, 8-Speed
Forged Alloy, Narrow Wide 30T, 127mm
Sealed Cartridge Bearings, Square Taper
KMC Z8
MicroSHIFT Acolyte, 8-Speed, 11-38T
Tektro HD-J285 Kid’s Specific Hydraulic Disc
Tektro HD-J285 Kid’s Specific Hydraulic Disc
Tektro Kid’s Specific Short Reach Lever for Hydraulic Brake
Marin Riser, 31.8mm Clamp, 30mm Rise, 580mm Width, 19mm OD Grip Section
Marin Alloy, 40mm
Marin MTB, Small Diameter
FSA No. 57E
Integrated With Saddle
Marin One-Piece Saddle/Post Combo, 27.2mm Alloy Post
