Kinesis GX Race Build Options
Kinesis GX Race Shimano GRX 800 1×11 Build
Frame + Forks – Kinesis GX Race 6069 series lightweight aluminium frame with Columbus Futura Plus carbon fork
Groupset – Shimano GRX800 1×11 – Choose your crank arm length, chainring size and cassette ratios
Wheels – Mavic All Road – Set up Tubeless – Options to upgrade below
Tyres – Vittoria Terreno T50 – Choose width and tan wall option
Stem, Handlebars, Setapost – Deda Zero 1, choose your stem length and bar width
Saddle – Selle San Marco Monza
Wheel Upgrades
Hope RX24 – Pro5 – new Hope alloy gravel wheelset with the best hubs in the business +£193
Mavic All Road S – Carbon gravel with a 5 year crash replacement warranty +£450
Hope RX40 – Pro5 – Carbon hope rims, hope pro5 hubs +£600
Every component is upgradeable on these builds
If you want your own alternative custom build get in touch we’ll be happy to help you spec out your dream build
We accept all cyclescheme vouchers
Email or call the shop for more information
Kinesis GX Race SRAM Rival XPLR Build
Frame + Forks – Kinesis GX Race 6069 series lightweight aluminium frame with Columbus Futura Plus carbon fork
Groupset – SRAM Rival XPLR 1×12 – Choose your crank arm length, chainring size and cassette ratios
Wheels – Mavic All Road – Set up Tubeless – Options to upgrade below
Tyres – Vittoria Terreno T50 – Choose width and tan wall option
Stem, Handlebars, Setapost – Deda Zero 1, choose your stem length and bar width
Saddle – Selle San Marco Monza
Wheel Upgrades
Hope RX24 – Pro5 – new Hope alloy gravel wheelset with the best hubs in the business +£193
Mavic All Road S – Carbon gravel with a 5 year crash replacement warranty +£450
Hope RX40 – Pro5 – Carbon hope rims, hope pro5 hubs +£600
Every component is upgradeable on these builds
If you want your own alternative custom build get in touch we’ll be happy to help you spec out your dream build
We accept all cyclescheme vouchers
Email or call the shop for more information
SRAM Apex 1×11 Build – Comes with Sector Tubeless Wheels, Schwalbe G-One tubeless Tyres and Kinesis finishing kit
Frameset: Kinesis GX Race
SHIFT LEVERS: SRAM Apex 1 x 11 Speed
REAR MECH: SRAM Apex 1 Long Cage
BRAKES: SRAM Apex 1 HYD 160mm Rotors
CASSETTE: Microshift CS-H113 11-42T
CHAIN: SRAM PC1110 with POWERLOCK with quicklink
CRANK SET: SRAM Apex 1 X-SYNC 40t 172.5mm
BOTTOM BRACKET: SRAM BB GXP – 68mm BSA
HUBS: Alloy, Sealed Cartridge Bearing Hub, Centre-lock, Front: 12mm x 100mm | Rear: 12mm x 142mm Through Axle
RIMS: Sector Alex DBX21 rim
TYRES: Schwalbe G-One Allround 700x40c TLE Tubeless Tyre
SEAT POST: Black Alloy 6061 27.2mm, 350mm, 5mm offset OEM
SADDLE: Selle Italia X3 Black OEM
HANDLEBAR: Black Alloy 6061 44cm
STEM: Black Alloy 6061 OEM 7° 90mm
HEADSET: FSA No. 42 Integrated Road, 1 1/2″ Lower and 1 1/8″ Upper Sealed Bearings
BAR TAPE: Black Cork Bar Tape OEM
If you want your own alternative custom build get in touch we’ll be happy to help you spec out your dream build
We accept all cyclescheme vouchers
Email or call the shop for more information
As used by our off road team riders

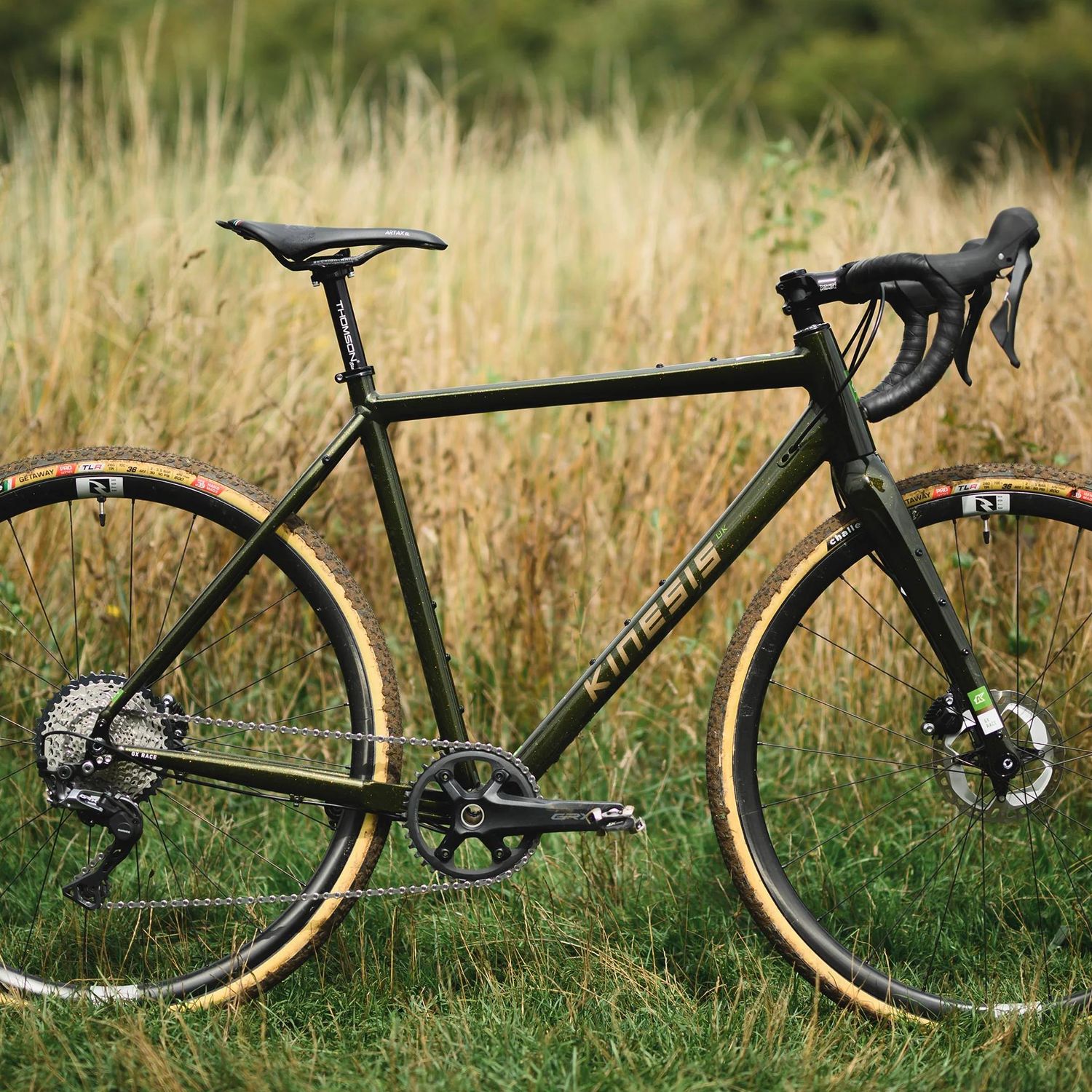

The GX Race combines the speed and agility of the race winning CX Race frameset, with the strength and capability of the award winning Tripster AT frameset. With new race inspired gravel geometry you are more aerodynamic in the drops or the hoods of the GX Race. A longer reach allows for shorter stems to be used and better off-road handling at high speed.
If your riding extends to swift bike packing trips then you can still load this bike up to reach destinations faster.
The GX Race premium alloy frame comes with the all-new Columbus Futura Cross Plus full carbon monocoque fork. The Futura Cross Plus features cargo mounts, internal dynamo cable routing, masses of tyre clearance and adjustable offset, all wrapped up in a lightweight package.
The GX Race uses adaptable cable ports, allowing you to build your frame with exactly the right cable routing, whether you’re running wireless, Di2 or mechanical 2x or 1x gearing.
As with our other framesets, Kinesis have partnered with GW Engineering and we are supplying the GX Race frame with their patented ‘Switch Lever’ lightweight hollow thru axles with a removable lever.
• Tough yet lightweight 6069 series tubeset with tapered machined headtube.
• All new colour matched Columbus Futura Plus carbon fork with 12mm Thru-Axle.
• Inboard Shimano Flat-Mount disc mounts on frame and fork (maximum 160mm rotors).
• Seat stay mounts for mudguards and pannier racks. Bridges on chain stay and seat stay for fender mounting, runs 40mm tyres with full mudguards for clean winter riding!
• 700c x 45mm tyre clearance / 650b x 50mm tyre clearance.
• 2 x bottle boss mounts with multi position points plus top tube mounts for secure fixing of a top tube bag.
• Headset, Thru-Axles, seat clamp and all cable guides included.
• Internal cable routing for mechanical and electronic gear systems.
• BSA threaded BB for real world low maintenance riding.
• Semi-sloping top tubes on our smallest sizes ensure a great fit without compromising handling.
Spec
• 142 x 12mm rear and 100 x 12mm front axle spacing.
• 68mm threaded BB shell.
• 48t max chainring size (single or double).
• 27.2mm seat post required.
• 31.8mm seat clamp included.
• 31.8mm front mech compatible seat tube.
• 22mm Flat Mount bolts required for the rear calliper.
• 1 1/8” – 1 ½” tapered headtube with integrated headset.
• 48cm, 50cm, 52cm, 54cm, 56cm, 58cm and 60cm sizes.
• 1.69kg (54cm frame).
• Metallic Aubergine or Moss Metallic.
