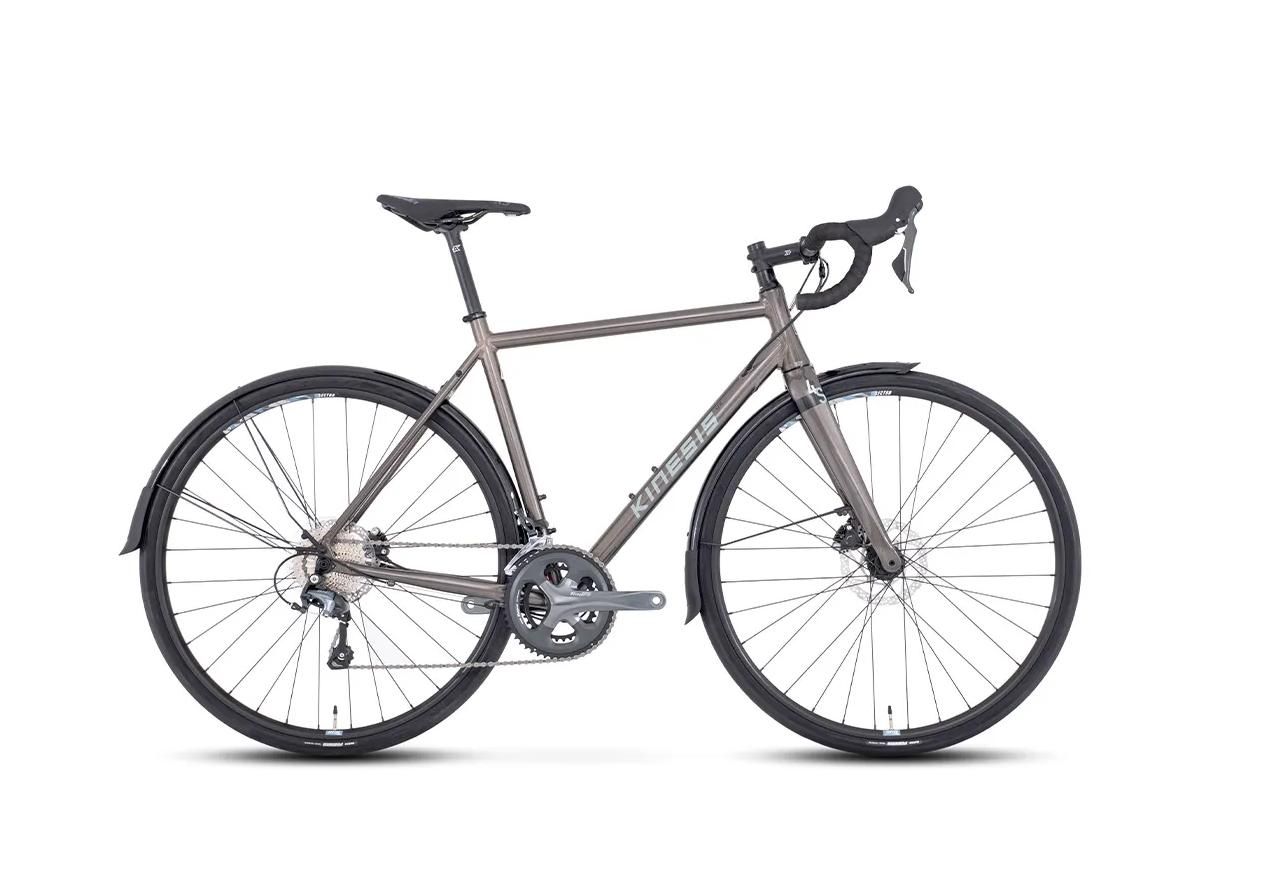

Introducing the brand-new Kinesis 4S Tiagra, a modern aluminium road bike designed for those who seek a balance between speed and adventure.
The 4S Tiagra is built around the same proven frame and fork as the highly praised, group test-winning R1 bike which Cycling Plus magazine proclaimed had “Understated class and excellent ride quality” and BikeRadar.com said had “instant zing when pressing the pedals”. The lightweight double-butted 6061 Alloy tube blend provides a responsive ride feel, and the impeccable weld quality and attention to detail ensure high standards. Additionally, the internal down tube cable routing keeps the bike clean and easy to service. It features a Shimano 2×10 drivetrain, offering a wide gear range suitable for diverse terrains. The 4S Tiagra also comes ready to ride with mudguards fitted, making it suitable for all seasons.
The custom full UD carbon fork reduces road buzz and offers precise handling, while the Kinesis Rider Fit Geometry ensures comfortable all-day rides. With four sizes to choose from, finding the perfect bike fit is made simple. Get ready to experience the perfect blend of performance and adventure with the Kinesis 4S Tiagra.
Frame — Lightweight double butted 6061 Alloy tube blend that delivers a light and responsive ride feel.
Fork — Custom full ‘UD carbon’ fork keeps weight low and takes out road buzz whilst feeling direct and accurate at all times.
Groupset — Full Tiagra 4700 20-speed groupset.
Brakes — Hydraulic Shimano Tiagra disc brakes are brilliantly reliable and handle the stopping duties with minimum effort.
Tyres — Maxxis Pursuer in 32c, hitting the sweet spot for grip, cornering and low rolling resistance.
FRAME: Kinesis Double Butted Alloy 6061.
FORK: Kinesis Full UD Carbon.
HEADSET: FSA Sealed Bearing No. 42 Integrated Road.
SHIFT LEVERS: Shimano Tiagra ST-4720.
REAR MECH: Shimano Tiagra RD-4700.
FRONT MECH: Shimano Tiagra FD-4700.
CHAIN: Shimano HG-51.
BOTTOM BRACKET: Shimano CN-HG54.
BRAKES: Shimano Tiagra BR-4770 Hydraulic.
ROTORS: Shimano RT64 160mm.
CASSETTE: Shimano CS-HG500 10 speed 11-34.
CRANKSET: Shimano Tiagra FC-4700 50/34t. S: 170mm, M & L: 172.5mm, XL: 175mm.
FRONT HUB: Alloy, Sealed Cartridge Bearing Hub, Centre-lock, 12 mm x 100 mm Through Axle.
REAR HUB: Alloy, Sealed Cartridge Bearing Hub, Centre-lock, 12 mm x 142 mm Through Axle.
RIMS: Lightweight low profile aluminium.
TYRES: Maxxis Pursuer 32c.
SEATPOST: Kinesis Alloy 6061 27.2 mm x 350 mm.
HANDLEBAR: Kinesis Alloy 6061 S(51):42 cm M(54):44 cm L(57):44 cm XL(60):46 cm.
STEM: Kinesis Alloy 6061 6° Rise S(51):80mm M(54):90mm L(57):90mm XL(60):100mm
BAR TAPE: Black Cork Bar Tape.
SADDLE: Selle Italia X3 Black.
Bike Weight: 10.1 kg Complete (Size Large 57cm).
