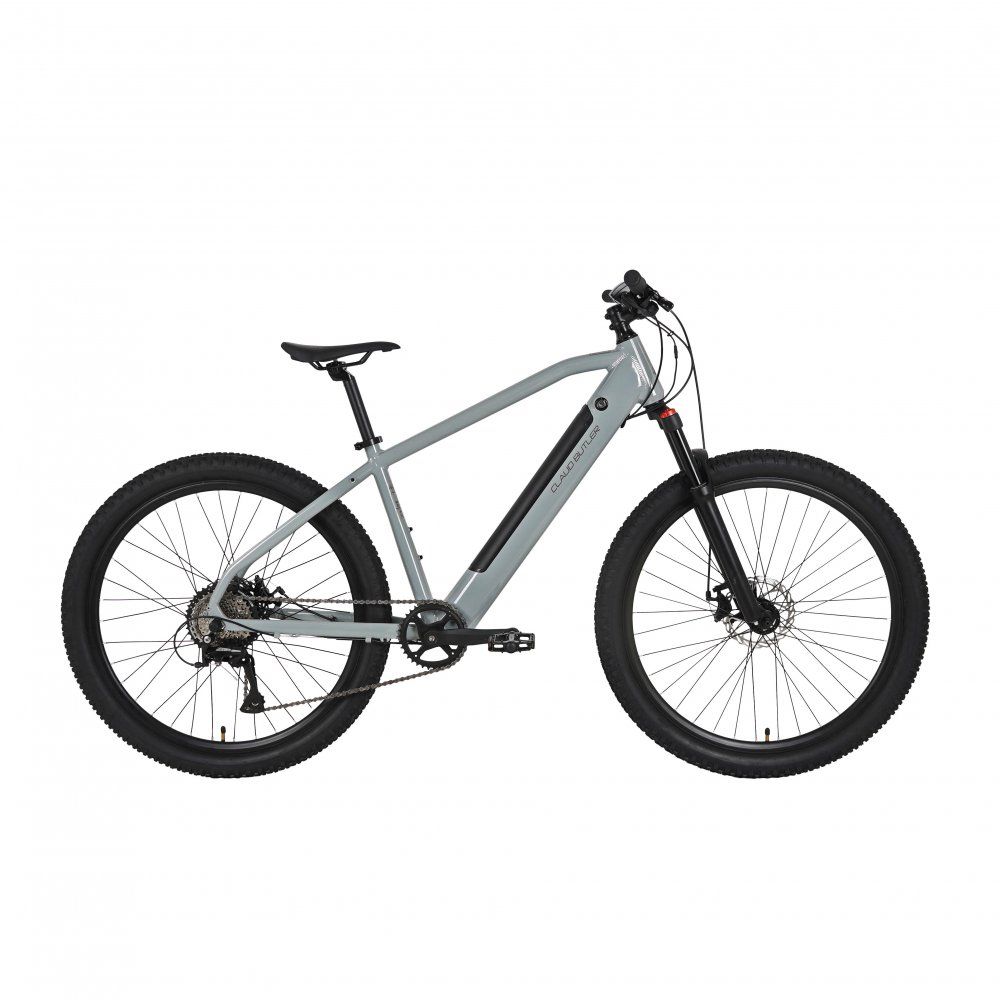

Introducing the all-new Claud Butler Ridge 1.0 electric mountain bike – the sibling of our best-selling Claud Butler Wrath.
The Ridge 1.0 is equipped with an integrated 375wh battery that delivers up to 40 miles/64km of range and can be charged from flat in 5 hours – either with the battery installed on the bike or removed using the provided keys for improved safety and convenience. The added security of a key lock for the battery gives you peace of mind when parked up in a public place.
The bike is powered by the well-regarded Bafang rear hub motor system to deliver 32nm of torque, making light work of hills and make powering along the flat ground a breeze. Select from 5 different power modes depending on how much assistance you want using the sleek and easy to use handlebar display which also shows the current battery level and speed. We’ve also fitted a walk assist mode to help push the bike along when walking.
We’ve fitted the Ridge with 27.5” (650b) wheels for an exhilarating ride, while the 2.35” wide tyres provide plenty of grip in mix of riding conditions. The Ridge 1.0 features a reliable Shimano Altus 1×8 speed gearing system with a wide-range 11-40t rear cassette for a little extra support on steeper climbs.
A 120mm travel suspension fork with hydraulic lock out, super-wide 780mm bars with a short 50mm stem, easily maintained cable disc brakes, a stylish Selle Royal saddle for additional comfort and lock-on grips.
The Claud Butler Ridge 1.0 is about getting out on the trails and having fun and is available in two sizes. We recommend the Medium for riders who are 5’4″ to 5’10” (162cm to 178cm) and Large for riders who are 5’10” to 6’2″ (178cm to 188cm).
| Maximum Range | 40 miles / 64km |
|---|---|
| Recharge Time | 5 hours |
| Maximum Assisted Speed | 15.5mph / 25kmh |
| Motor | Bafang rear hub motor, 32nm torque |
| Motor Type | Rear hub motor |
| Battery | 36V 10.4Ah, 375wh, Integrated battery, Removable for charging on or off the bike |
| Battery Type | Integrated |
| Charger | 42V 2A, 3 pin UK plug |
| Display | Toplogy DZ40 LCD Display with mode selection, battery level and current speed |
| Frame | 6061 aluminium frame, Internal cable routing, Fully integrated removable battery, 27.5″ wheels |
| Fork | 27.5″ Suspension fork, Hydraulic lockout, 120mm travel |
| Handlebar | Aluminium, 780mm wide, 25mm rise |
| Stem | Aluminium, 50mm reach, 31.8mm |
| Grips | Lock on grips, Black |
| Gear Shifters | Shimano Altus SL-M315 trigger shifter, 8 speed |
| Rear Derailleur | Shimano Acera RD-M3020, 8 speed |
| Chain | Taya eOcto eBike specific, 8 speed |
| Cassette/Freewheel | Shimano, 11-40T, 8 speed |
| Chainset | Electrum alloy, 38T, 170mm crank arms |
| Number of Gears | 8 |
| Pedals | MTB platform pedals |
| Brakes | JAK7 mechanical disc brakes, Semi-metallic pads, 160mm rotors |
| Brake Levers | Alloy, Black |
| Front Hub | Alloy with quick release, Black |
| Rims | 27.5″ double wall alloy, 36 hole |
| Tyres | Ralson Vector, 27.5×2.35″ |
| Saddle | Selle Royal |
| Seat Post | Alloy, 27.2x350mm, Black |
